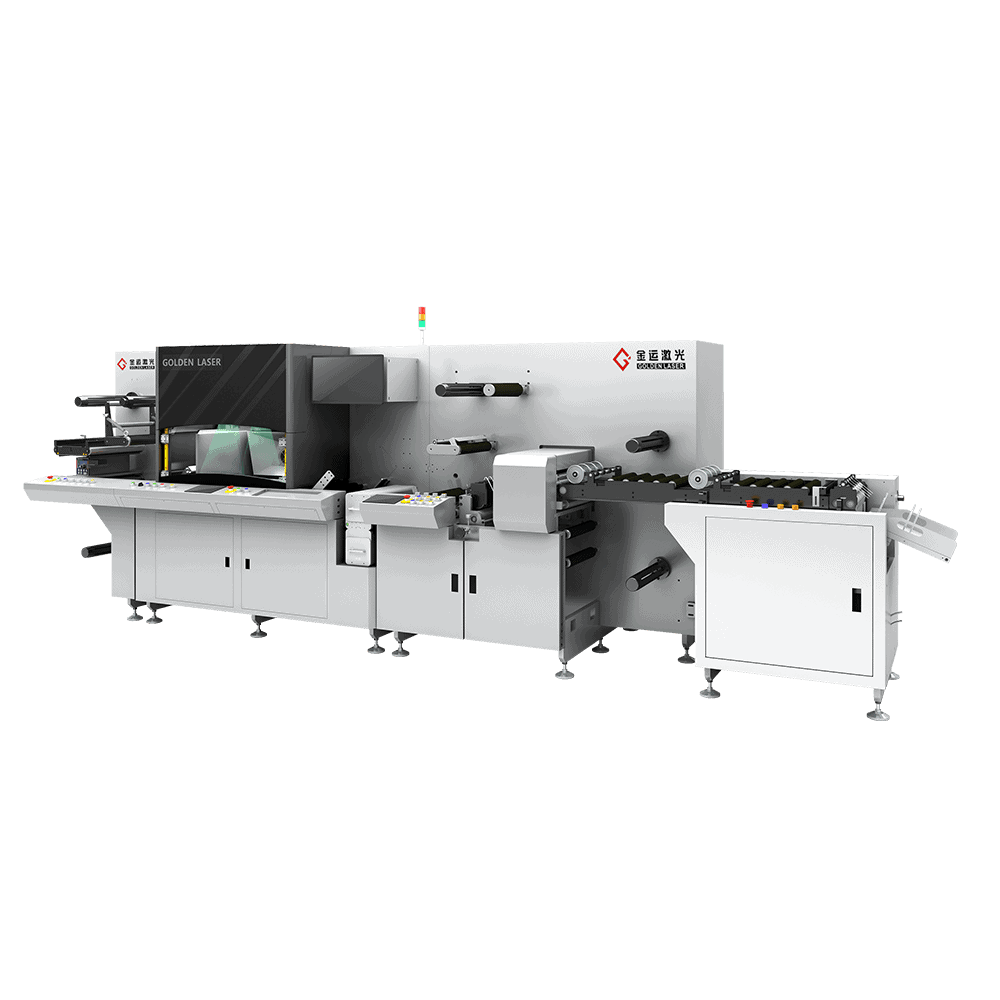

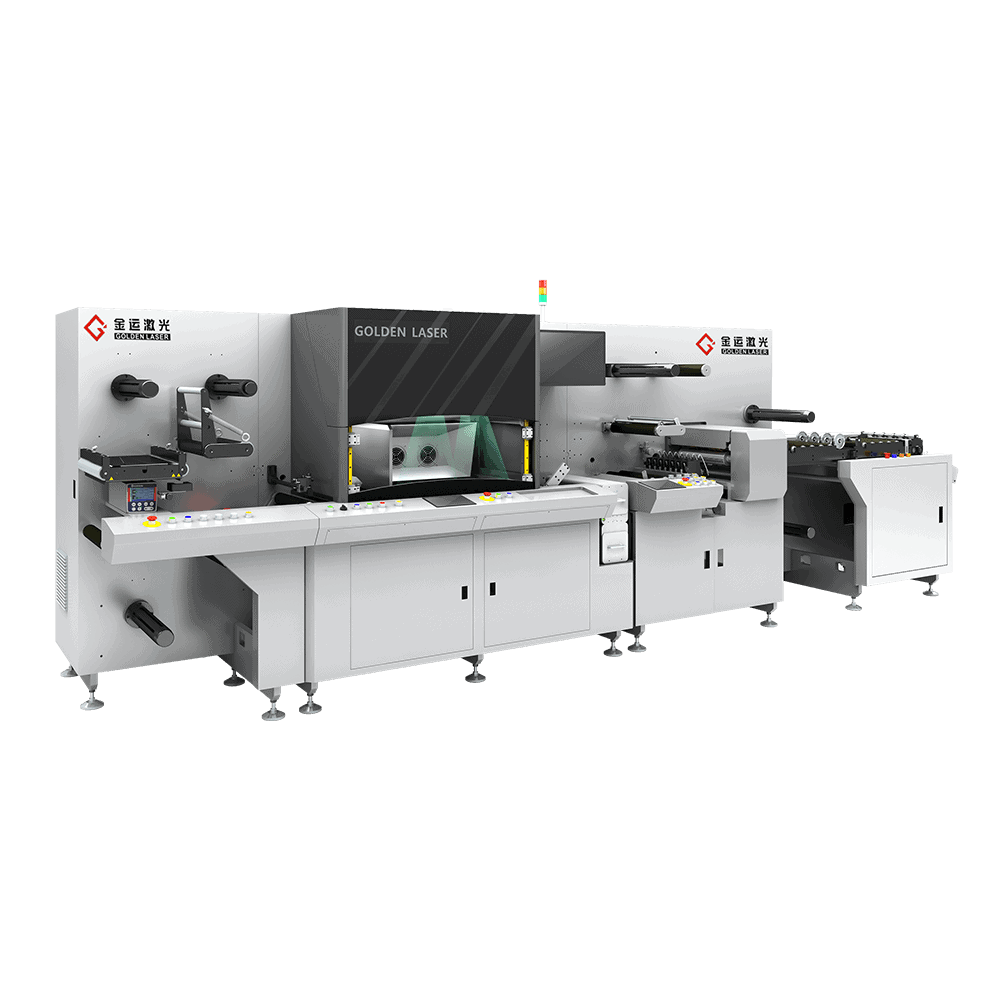

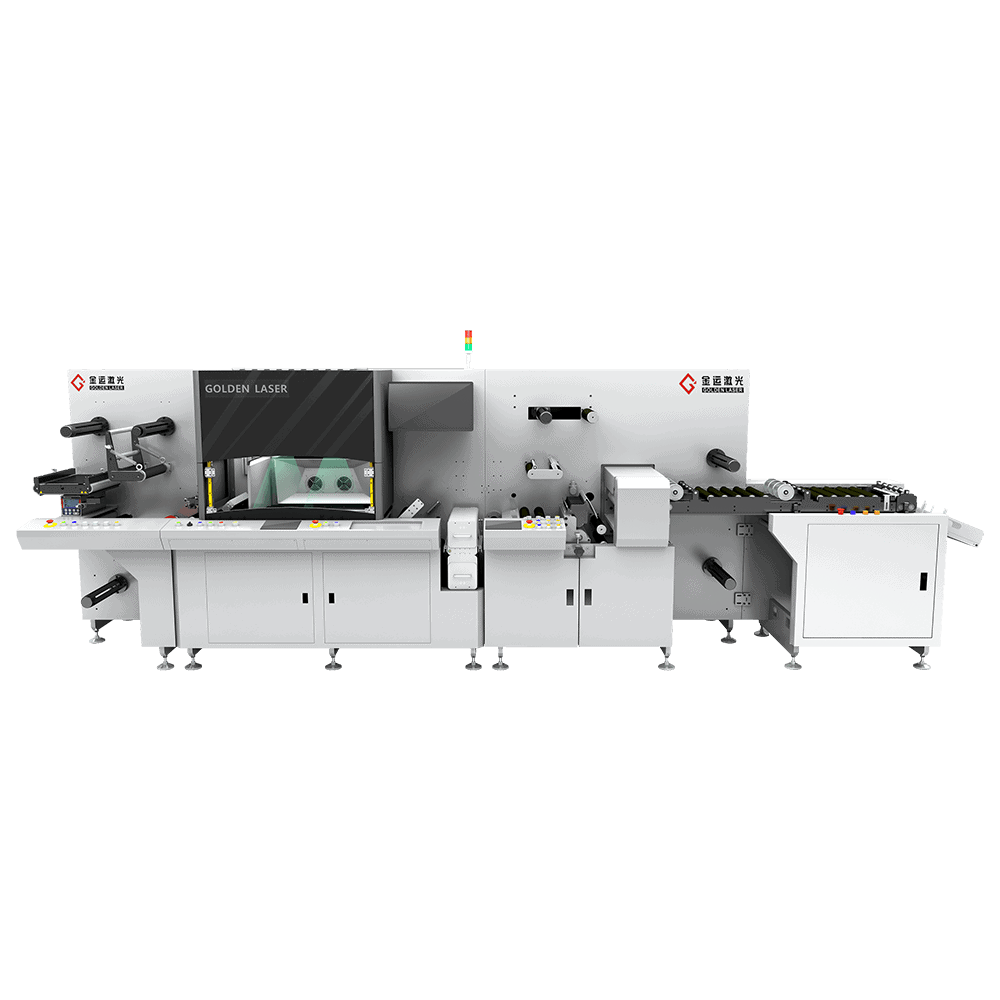

Roll to Roll Label Laser Die Cutting Machine
Model No.: LC350
LC350 Label Laser Die Cutting Machine is an innovative solution designed for roll materials converting processes. Its modular design facilitates roll-to-roll, roll-to-sheet, and roll-to-sticker processes seamlessly. With digital laser cutting and finishing capabilities, LC350 ensures unmatched quality and performance, enabling manufacturers to tackle the most demanding challenges in today’s competitive market landscape.
Digital Laser Die Cutting System
LC350 laser die cutting system delivers high quality, on-demand converting of roll materials, dramatically reducing lead time and eliminating the costs of conventional die cutting through a complete, efficient digital workflow.
The standard version features unwinding, laser cutting, dual rewinding and waste matrix removal. And it is prepared for add-on modules such as varnishing, lamination, slitting and sheeting, etc. It is possible to cut with different power levels on the same label.
The system can be fitted with Barcode (or QR Code) reader for continuously cutting and seamlessly adjust jobs on the fly. LC350 offers completed digital and automatic solution for roll to roll (or roll to sheet, roll to part) laser cutting. No extra tooling expense and waiting time needed, ultimate flexibility to fulfill dynamic market demands.
- Web width: 350mm, 450mm, up to 1000mm (Customized)
- Cutting accuracy: ±0.1mm
- Cutting speed：0~120mm/s
- Laser type: CO2 laser (picosecond laser, UV laser ... options)
- CO2 laser power: 150W, 200W, 300W, 600W
Main features of the label laser die cutting machine LC350
Features
Quick Turnover
Eliminates traditional tooling & die fabrication, maintenance and storage. Ideal solution for just-in-time manufacturing and short-runs.
Precision Cutting
Produce complex geometry and superior part quality that cannot be replicated in the traditional die cutting process.
PC Workstation
Through the PC Workstation you can manage all the parameters of the laser station, optimize layout for maximum yields.
Multiple Processes
Suitable for different kinds of work: Full cutting, kiss-cutting, perforating, micro perforating, engraving, marking, creasing - in a single processing run.
Vision System - Cut to Print
Vision camera systems or sensors are available for registering printed materials or pre-die cut shapes, allowing precision cutting with cut-print registration of 0.1mm.
Modular Design
Extreme Flexibility: A variety of options are available to automate and customize the system to suit a wide variety of converting requirements.
Digital Workflow
A complete digital workflow solution: Pattern changeover is as simple as opening a file; no downtime or setup is required.
Intelligent Software
Self-developed software intelligent algorithms improve cutting accuracy by constantly adjusting the laser processing speed to match different graphics.
Unlimited Cutting Path
The cutting beam can be moved in any direction and cuts smoothly. Easily create rounded, squared corners or jagged edges for shaped labels.
How a Laser Die Cutting Machine Works
Specifications
| Model No. | LC350 |
|---|---|
| Laser Source | CO2 RF laser |
| Laser Power | 150W / 300W / 600W |
| Max Web Width | 350mm |
| Max Width of Feeding | 370mm |
| Max Web Diameter | 750mm |
| Max Web Speed | 120m/min (depending on laser power, material and cut pattern) |
| Accuracy | ±0.1mm |
| Power Supply | 380V 50/60Hz Three phase |
Configurations
Converting Options
Golden Laser is capable of customizing laser die cutting machines to adapt your specific needs by adding the converting modules. Your production lines may benefit from the following converting options.
- Cutting from roll to roll
- Cutting from roll to sheet
- Cutting from roll to stickers
- Bar code reading - on-the-fly job change
- Semi-rotary die-cutting
- Flatbed die-cutting
- Lamination
- Flexo varnishing
- Cold foil
- Slitting - Blades slitting or razor slitting
- Sheeting
- Self-wound lamination and with liner
- Waste matrix rewinder with label shifter and back-scorers
- Waste collector or conveyor for through cut
- Corona treatment unit
- Missing labels inspection and detection
Some of the Converting Options Portfolio
Don't like the "Red Color" machine?
No problem!
The colors of our machines can be customized to your liking.
Check out the blue and white machine body we customized for one of our customers.
Application
Applicable Materials:
PET, paper, coated paper, glossy paper, matte paper, synthetic paper, kraft paper, polypropylene (PP), TPU, BOPP, PE, plastic, film, PET film, microfinishing film, lapping film, double-sided tape, 3M VHB tape, reflective material, fabrics, etc.
Application Fields：
Labels / Stickers & Decals / Printing & Packaging / Films & Tapes / Heat Transfer Films / Retro Reflective Films / Adhesive Tapes / 3M Tapes / Industrial Tapes / Abrasive Materials / Automotive / Gaskets / Membrane Switch / Electronics, etc.
